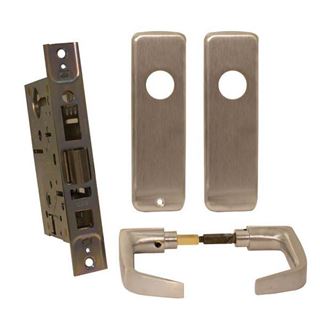

Product Description: Standard Mortise Lock
Core Housing: Non-keyed or dummy trim
Function Code: Passage (F01)
Lever Style: contour/angle return, ADA
Trim Style: wrought stainless steel
Finish: 626, Satin Chrome
Rotating inside or outside lever, cannot be locked.
Case: 0.095” cold rolled steel, 5-7/8” H x 7/8” D x 1/16” W. Steel is zinc diachomate plated for corrosion protection.
Door Thickness: Standard lock configuration designed for doors 1-3/4”.
Latchbolt: Stainless steel, ¾” throw. Latch is oil-impregnated for anti-friction operation. Reversible without opening case.
Faceplate: Stainless steel, brass or bronze material, 8” H x 1-1/4” W x 1/16” T. Lock face automatically adjusts to proper bevel during installation.
45H Series – The design and operation of the BEST mortise lock meets the intent of the standard for ANSI A117.1 section 404.2.6.
