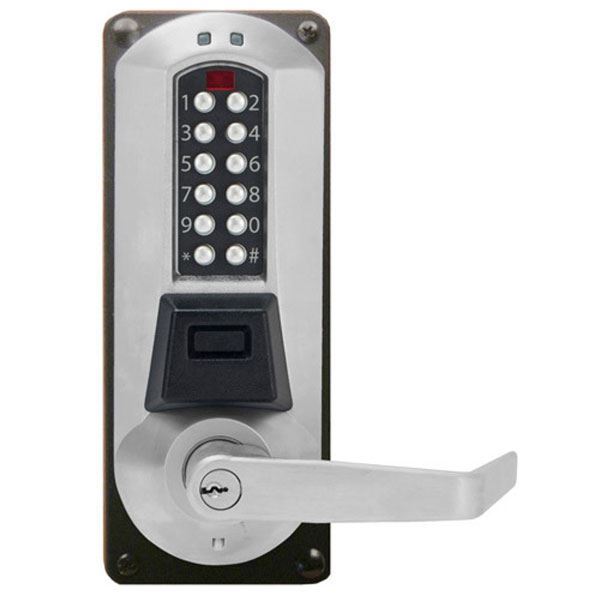

Picture of E-Plex 5700 Series Electronic Pushbutton Lock: Satin Chrome

E5710MWL-626-41

Manufacturer: Dorma Kaba
Product Description: E-Plex 5700 Series Electronic Pushbutton Lock: Satin Chrome
Series: 5700
Grade: 1
Function: 1, Exit Trim
Locking Device: 0, Exit Trim
Key Override: M, LFIC Medeco/ASSA/Yale/Aboly (5 or 6 pin)
Handle: WL, Winston Lever
Finish: Satin Chrome

Features:

No wires


Number of Users: 3,000


Programming: locks are programmed simply via keypad using LearnLok Feature without any software, or with optional E-Plex Enterprise Software to manage a large number of doors and users


Handing: non-handed, pre-assembled for left hand installation – easily changeable in the field


Scheduling:


Access Scheduling – up to 16 different access schedules may be programmed in lock


Holiday/Vacation – up to 32 different holiday/vacation blocks may be programmed in the lock


Operation Modes:

  • PIN Access
  • Passage – can be toggled on/off or can be pre-programmed to re-lock after a certain number of hours
  • Lockout


Authority Levels: five different levels allow who has access to specific lock functions, including Service Codes – programmed for one-time access or come-and-go access for 1 to 24 hours

User Parameters:

  • Code Length – adjustable to accept 4 to 8 digits
  • Anti-tamper Lockout – adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
  • Re-Lock Time – adjustable from 2 to 20 seconds



 Click Here for Information Sheet

Series E-Plex
Finish Satin Chrome (626, US26D)
Series E-Plex
Finish Satin Chrome (626, US26D)

E-Plex 5700 Series Electronic Pushbutton Lock: Satin Chrome

Details
SKU: E5710MWL-626-41
