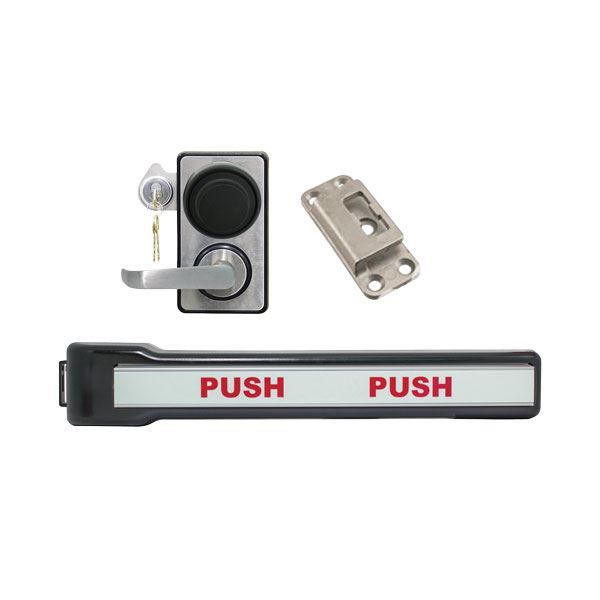

Picture of LKM10K Type IV Panic Bar Model with Kaba Mas X-10 & #2 Strike
ATTENTION: Non-Government  Buyers, by FF-L-2740B Specification you must have or obtain a CAGE Code to purchase the FF-L-2740 Locks. Click here for instructions to obtain a CAGE Code
NSN: 5340-01-678-6303
Series:  LKM10K
Model:  Panic Bar
GSA Type:  IV
Lock:  Kaba Mas X-10
Strike: #2 Outswing Door Single Door Reverse Bevel
Door Thickness: Minimum 1-1/8" Maximum 2-5/8"
Spindle Extension Available up to 3-3/8" door (Part Number - LKM10KEXT
Type IV – Pedestrian Door Lock Assembly Panic (PDLAP)
  • Utilizes electronic access control
  • Fire rated panic bar for use on fire rated doors
  • ADA compliant
  • Non-handed
  • 90 minute minimum fire rating
Compliance & Certifications
  • FF-L-2890C Approved
  • GSA Approved
  • U.L. Fire Rated
  • NFPA 80 & 101 Life Safety
  • BHMA/ADA - Grade 1
Dead Bolt - The FF-L-2890B specification requires a locking device equipped with dead bolt and trigger mechanism that operates when the combination lock is in the locked position.  The dead bolt automatically extends into the locked position when the trigger mechanism engages the strike.
Encapsulated Strike - The LKM10K Lock Series comes with a strike that surrounds the dead bolt for reinforced security.  As specified four strikes are available for inswing, outswing & pairs of doors.
High Security Combination Lock Compatibility - The LKM10K Lock Series is designed to work with any standard footprint combination lock meeting Federal Specification FF-L-2740B (Kaba Mas X-10 and S&G 2740B).  No modificiations to the deadbolt is required.
Access Control Device Compatibility - The LKM10K Lock Series is an electrified lock and is compatible with a variety of electronic access control devices (12v or 24v DC - 1 amp).
Depths of Security - When both the combination lock and access control device are installed with the LKM10K Lock tiers of security are created.
 First Tier - FF-L-2740B approved combination lock
 Second Tier - Access Control Device or Key Override
Example of Day Locking - The supervisor “unlocks/opens” the combination lock to allow staff to enter throughout the day by utilizing the access control device.  The LKM10K Lock Series provides this managerial control.  However, once the combination lock is “locked/closed” the access control device  and Key Override is negated.
Monitoring Switches - Deadbolt Switch - monitors the Pedestrian DeviceBolt (Request to Exit - REX); Combination Lock Switch - monitors the FF-L-2740B Combination Lock Bolt and Entry Monitoring Switch - monitors the Lever Handle
Panic Device (Panic Bar Model) - A device for unlocking a door during emergency conditions.  The mechanism consists of a spring-loaded metal bar fixed horizontally to the inside of an outward-opening door.  When the bar is pushed or depressed, it activates the mechanism which unlatches the door allowing occupants to quickly exit the area in panic situation.   (Type IV)
Key Override Option - A separate module is no longer necessary for this option. Key Override is standard on all LKM10K Lock Series models.  However, it is optional to utilize, so it can be added with little effort at a later date if necessary.   We recommend Key Override because it allows a key to “override” the access control device only.  It will not override the combination lock.  This capability is particularly important during the event of power outage, failure or malfunction of an access control device, or an emergency that requires expedited entry.
UL Fire Rating - The LKM10K Lock Series is UL Listed.   90 minute fire rating when used with a Kaba Mas X-10.   This rating is in accordance with the Standard, “Positive Pressure Fire Test of Door Assemblies”, ANSI/UL 10C, UBC 7-2 (1997).
Illuminated Labels - All models of the LKM10K feature an illuminated label for easy visibility in no/low light situations.
Interchangeable - You can install the LKM10K Lock Series in your facility and maintain a consistent look since the appearance of the Exterior Trim has not changed.
Retrofittable - Simply remove the existing LKM7000 Lock Series attach our Retrofit Fixture modify a few existing holes then install either the Push/Pull Model or Panic Bar Model.
Field Tested - With over 25,000 LKM7000 Lock Series in use today, we are confident the improvements we have made in our next generation LKM10K Lock Series will exceed your expectations.  We’ve conducted our own internal 1,000,000 cycle tests as well has had a unit in the field for over a year, with great success.
Easy Operation - The internal linear bearing allows for easy entry and exit even with heavy loads applied to the door.
Easy To Order - All three models includes everything you need, no add-ons.  You get the Pedestrian Exit Device, the combination lock, the strike, Key Override option and three internal Monitoring “Alarm” Switches.
Replaces LKM7000 and LKM7003
Product Type Lock Package
Lock Type Kaba Mas X-10
Model Panic Bar
Type Type IV
Product Type Lock Package
Lock Type Kaba Mas X-10
Model Panic Bar
Type Type IV

LKM10K Type IV Panic Bar Model with Kaba Mas X-10 & #2 Strike
